Are golf cart steering wheels universal?

No universal fit follows from five or six mounting holes. Confirm the wheel-to-hub bolt circle, bore and fasteners, plus the hub-to-column spline and retention fit for your exact cart.

What steering wheel adapter does a Club Car DS need?

Use a hub expressly specified for your DS year and steering column, paired with a compatible wheel. 10L0L lists separate DS and Precedent variants; that listing does not prove every year or wheel pairing.

How do I measure steering wheel size?

Measure the outside diameter across the center. Also compare grip thickness, dish, hub depth, knee clearance, dashboard visibility and seat-opening clearance before ordering.

Can I install the wheel myself?

Use the vehicle and exact hub/wheel service instructions, including approved removal tools, service state, fasteners and retention torque. If those specifications are unavailable, arrange qualified installation rather than tightening by feel.

Will a bigger wheel reduce steering effort?

A larger radius provides more mechanical leverage for the same column torque, but clearance and driving feel depend on the cart and driver. It does not repair stiff steering or establish an approved wheel size.

Do any golf carts have factory power steering?

Yes. Kandi lists electric power steering on its current Kruiser 4Pro Fwd. Verify the exact model specification rather than assuming all carts or all Kandi models use the same steering system.

Golf Cart Steering Wheels: Size, Adapters & Club Car DS

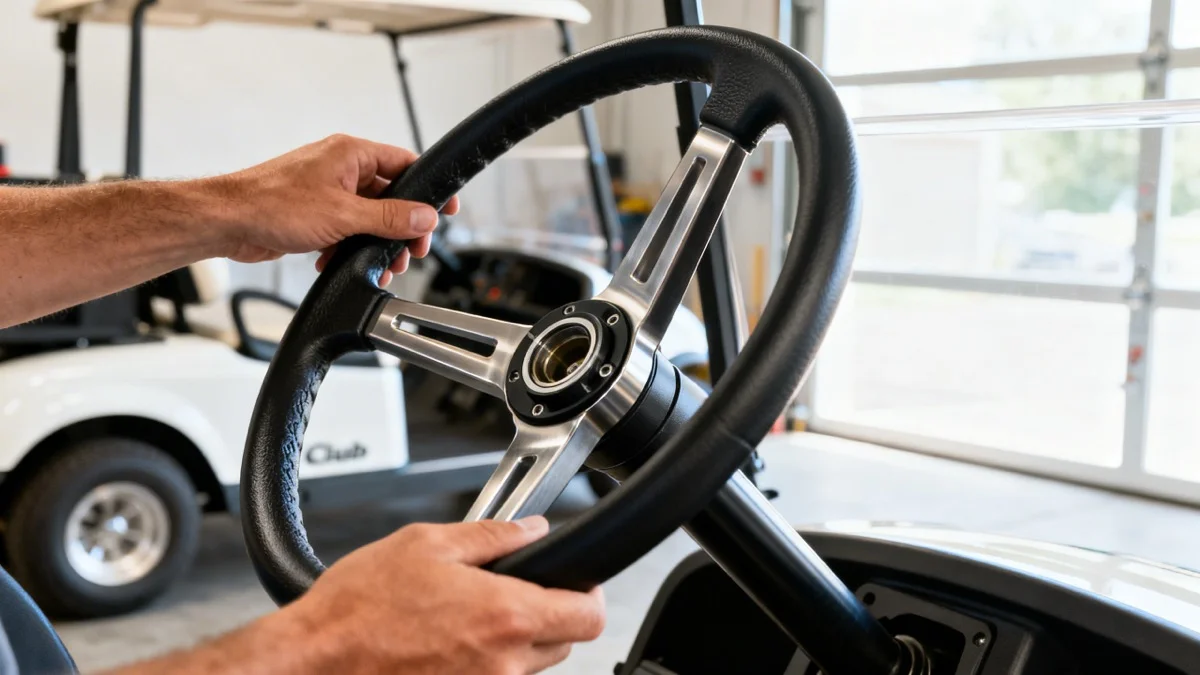

Close-up of a custom golf cart steering wheel with aluminum spokes mounted on a white Club Car

Golf Cart Steering Wheels: Match the Column, Hub and Wheel

Choose a replacement for a damaged grip, suitable dimensions or a preferred appearance. Before buying, establish two separate connections: hub to steering column, and wheel to hub. Diameter and bolt count alone cannot establish either connection.

Club Car DS and other adapter choices

The 10L0L adapter page, inspected October 10, 2026, lists separate Club Car DS, Club Car Precedent, E-Z-GO TXT/RXV and Yamaha variants. It does not provide a complete year-by-year fit chart in its text. Obtain confirmation for your actual year, column and wheel before ordering; do not extend TXT/RXV wording to every E-Z-GO model or Precedent wording to every Club Car.

Connection or dimension	What must match
Column to hub	Specified spline/shaft fit, seating depth, retained thread engagement and applicable fastener
Wheel to hub	Bolt-circle diameter, hole count, center bore, fastening arrangement and specified bolt length/grade
Driver and cart clearance	Finished wheel diameter, dish and hub depth; knee, dash and seat-opening clearance
Horn button, if used	Approved rotating contact arrangement and the cart’s protected horn circuit

A wheel advertised as having both five and six holes still needs the correct dimensions and hardware. Ask for the dimensioned drawing or a maker-confirmed wheel-and-hub pairing, rather than relying on a universal label.

What actual owners found

wonka, fitting a 1990 E-Z-GO PC4X, reported on March 14, 2021 that the particular TXT/RXV-labeled adapter they bought fit their cart. The earlier discussion contained conflicting seller answers. That is useful evidence of one reported fit; the thread supplies no dimensional or torque validation and does not approve every TXT/RXV hub for every Marathon-era column.

Scott Delaney’s July 7, 2023 report about a 1997 Club Car DS describes a 16⅜-inch automotive wheel that interfered with fully opening the seat. His improvised retention did not engage matching splines, so it is not an installation method to copy. The useful buying lesson is to check service access as well as knee clearance; a wheel that clears the driver can still block the seat.

Measure before choosing diameter

Measure outside edge to outside edge through the wheel center, then compare the proposed hub depth and dish. Check the driver’s normal seating position, instrument view and required service access.

Here is an idealized leverage calculation, not a driving test. Increasing diameter from an assumed 13 inches to 14.5 inches increases radius from 6.5 to 7.25 inches. For the same column torque, tangential hand force becomes 6.5 ÷ 7.25 = 89.7% of the former force, about a 10.3% reduction. But the rim also extends another ¾ inch toward a knee or obstruction if the center stays fixed. Grip, geometry and steering condition affect real comfort.

A larger wheel is not a repair for binding, excess play or abnormal steering effort. Have those faults assessed before selecting a cosmetic replacement. Factory assistance is also model specific: Kandi lists electric power steering on the Kruiser 4Pro Fwd.

Installation needs the exact procedure

MadJax’s wheel/hub instructions show a retained column nut and six included M6×25 wheel bolts, and mark the supplied horn wiring as unused. That arrangement does not authorize different hubs, bolt lengths or a working horn conversion. The document does not give numerical retention torque; obtain the applicable vehicle and hub specifications or use a qualified golf cart repair shop.

Follow the specified service state, removal tool, fastener replacement rules, torque and final steering checks. Battery disconnection alone does not eliminate all risks. Do not substitute hammering, an improvised friction fit, subjective tightness or a successful drive for correct retention. Quick-release hubs and slip-on covers need their own confirmed compatibility and securement; neither should be assumed safe from appearance.

For a consumer warranty, FTC guidance says aftermarket use alone is not grounds to deny coverage, while damage caused by a defective part or improper installation may be excluded. Review the warranty applicable to the actual cart and use; that principle is not approval of a steering modification.
